Designed exclusively for heat-resistant alloys, nickel-based alloys, titanium alloys, and special cast tensile steels, all with high tensile strength of over 142,000 psi. It features ultra-hard, diamond sharp carbide tipped teeth that resist low thermal conductivity and abrasion that can quickly break down conventional bi-metal type bands.





Click to download Pdf

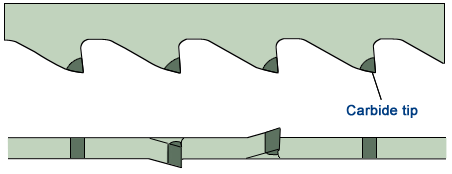

    Carbide tooth tips
    Ground tooth form
    Special back material


    Greater wear resistance than bi-metal blades
    Higher heat resistance than bi-metal blades
    Less tooth vibrations
    Precision ground tooth


    Fast cutting
    Long life
    Able to cut up to 54HRC



Mild steel,
Non-ferrous metal
Tool steel,
Prehardened metal
Hot work die steel,
Stainless steel
Super heat
resisting alloy
Small
~100mm
Medium
100
~400mm
Large
400mm~
Small
~100mm
Medium
100
~400mm
Large
400mm~
Small
~100mm
Medium
100
~400mm
Large
400mm~
Small
~100mm
Medium
100
~400mm
Large
400mm~
No special restriction for the material to be cut.
Capable of cutting the material whose hardness is HRc40 (Hv 400) or more

Band width
(mm)
Band thickness
(mm)
Pitch
1.25
2
2.5
3
4
27
1.1

•

34
1.3

•
•
•
41
1.3

•

•
54
1.6

•
•

67
1.6
•
•
•

Note) CTB uses carbide for the tooth tip. Please use special care when installing and removing the blade so as not to cause teeth chipping or stripping.
