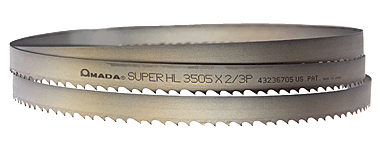

Combines the effectiveness of the HI-LO design with a multi-set tooth design. This design allows more cutting surfaces to be in the work piece that increases cutting rates, improves surface finishes and extends blade life.





    Hi Lo tooth height design
    Varying set design
    Specially designed tooth form
    Hardness of HRC68-69
    10 degree positive rake angle


    High heat resistance
    High wear resistance
    Reduced cutting resistance for easy tooth penetration


    Long life on moderate to difficult to cut and work hardening materials
    Fast cutting on moderate to difficult to cut materials
    Straight cutting









Click to download Pdf

=Break-in area/ 1000 cm2


Mild steel,
Non-ferrous metal
Tool steel,
Prehardened metal
Hot work die steel,
Stainless steel
Super heat
resisting alloy
Small
~100mm
Medium
100
~400mm
Large
400mm~
Small
~100mm
Medium
100
~400mm
Large
400mm~
Small
~100mm
Medium
100
~400mm
Large
400mm~
Small
~100mm
Medium
100
~400mm
Large
400mm~

 • 50, 55, A, B, C, D,
 • 1005-1095, 1513-1563
 • 1541-1572,  • 5015-5150
 • 4118-4161   • 1330-1345
 • 3115-3315
 • 4012-4047, 4419, 4422, 4427
 • 4615-4626, 4815-4820
 • 4320-4720, 8115-9430
 • 1108-1215   • 1100-7075
 • C10200, C12000, C21000 		 • W-1, W-2, W-5
 • P-2, P-3, P-4, P-5, P-6, P-20,
   P-21
 • S-1, S-2, S-4, S-5, S-6, S-7
 • L-2, L-6,  • 5155, 5160
 • A-2, O-1, O-2, O-6, D-2, D-3,
   CPM 10V
 • T-1, T-2, T-3, T-4, M-1, M-2,
   M-5, M-15
 • 50100, 51100, 52100 		• H-10, H-13, H-21, H-22,
  H-24, H-25
 • 210, 202, 302, 303, 304, 308
 • 314, 316, 317, 321, 330, 347
 • 410, 416, 420, 430, 440C
 • 15-5PH, 17-4PH, 15-7 		 • 309, 409, 600
 • MONEL, K-MONEL,
   INCONEL718,
    HASTELLOY A, B, C,
 • A286, INCOLOY 800, RA330
 • ASTROLOGY WF-11
 • Monel400, K-500
 • Ti-6AI-4v

Band width
(mm)
Band thickness
(mm)
Pitch
1.1 / 1.5
2 / 3
3 / 4
27
0.9

•
•
34
1.1

•
•
41
1.3
•
•
•
54
1.6
•
•

67
1.6
•
•

80
1.6
•
