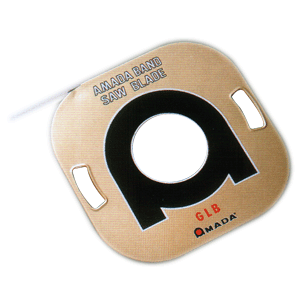

Bi-metal blade for contour machine made practicable for the first time in the world.
    Capable to satisfy three requirements of the blade used for contour cutting of various steel materials; break free, bend free and continous sharpness.
    Amada's original M42 base matrix high-speed steel is used for the teeth and tough special steel spring steel is used for the backing material. By combining these two types of steels perfectly, it became possible to cut efficiently all kinds of hard-to-cut material that could never to be cut with any conventional blade. In addition, the blade endures breaking or bending force and maintains outstanding sharpness. surprisingly long service life is available.



Click to download Pdf



Band width
(mm)
Band thickness
(mm)
Pitch
4
6
10
14
18
3
0.64

•
0.90

•

5
0.64

•
•
0.90

•
•

6
0.64

•
•
•
0.90

•
•
•

8
0.64

•
•
•
0.90

•
•
•

10
0.64

•
•
•
•
0.90
•
•
•
•

13
0.64

•

0.90
•
•
•
•

 * A coil length is 30m.
