Tru-Cut Tools (I)

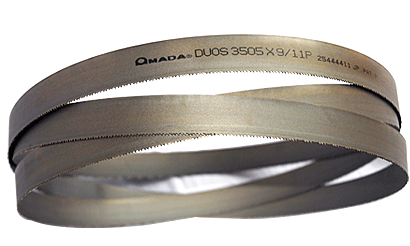

Blade exclusively designed for the light-duty band sawing machines to cover a wide range of cutting applications. No Break-in procedure is necessary.









			Most cutting applications can be cut efficiently and economically with the DUOS 9/11 P
			The problem of operators selecting the improper blade has been virtually eliminated by the DUOS
			The DUOS uses two different tooth and set configurations to control excessive feeding in profile and tubing type materials
			Adopting a positive rake angle enhances cutting performance in both solid and profile cutting
			Increasing the chip area of the gullet by utilizing the two-step relief angle is a first for the smaller pitches
			Time-consuming break-in periods are totally eliminated when using the DUOS
			DUOS is a blade developed exclusively for the light-duty band saw. This design prevents teeth stripping and or chipping when cutting profiles while expanding the application to include solid material to the full capacity.


			Highest quality backing material with M42 strip assures the longest possible blade life.
			Innovative Twin Set plus Proprietary Tooth shapes in a Hi-Lo configuration for the most efficient and economic metal sawing.
			Blade exclusively designed for the light-duty band sawing machines to cover a wide range of cutting applications.


			Long life on mild solid steel and heavy wall tubing and structural
			Low cost per cut
			High production rate

Break-in cutting is unnecessary

Tube

Light - Weight
Shaped steel

Shaped steel

Small diameter solid

• A36
• 30, 33, 40, 45
• 50, 55, A, B, C, D,
• A569

• 1005~1095
• 1108~1215
• 1330~1345
• 1513~1536

• 1541~1572
• 3115~3315
• 4012~4047
• 4118~4161

• 4320~4720
• 4815~4820
• 5015~5150
• 8115~9430

• Aluminum and aluminum
alloy (1100~7075)
• Copper and Copper
alloy (C10200~C21000)

• 302, 304, 304L, 316, 316L,
321, 347, 410, 430, 444


Band width (mm)	Band thickness (mm)	Pitch

			9 / 11

19	0.9		•

27	0.9		•

34	1.1		•

Note) Product line- of "DUOS" is limited to comparatively small pitches considering frequency of use. Please use "PROTECTOR" 4/6P or 3/4P where machinable material is not applicable.
