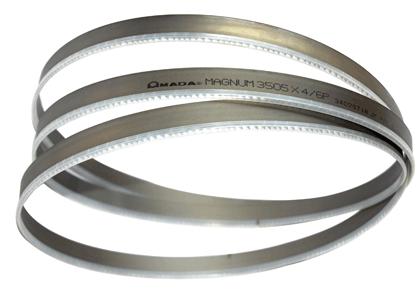

With its special alloying technology, Magnum Hi Lo achieves HRC70 tooth hardness. It maintains positive cutting action and outlasts other blades in production cutting of large-diameter, work hardening steels and nickel-base super alloys with tensile strength of up to 164,000 psi.





    Patented M-71 high speed edge
    Hardness of HRC70
    Varying set width
    Hi-Lo tooth height
    15 degree positive rake angle


    High wear resistance
    Reduced cutting resistance
    High heat resistance
    Higher tooth hardness than M-42 bi-metal blade


    Long life on difficult to cut material
    Faster cutting on difficult to cut material
    Increased accuracy
    Faster cutting on large diameter material






=Break-in area/ 1000 cm2


Mild steel,
Non-ferrous metal
Tool steel,
Prehardened metal
Hot work die steel,
Stainless steel
Super heat
resisting alloy
Small
~100mm
Medium
100
~400mm
Large
400mm~
Small
~100mm
Medium
100
~400mm
Large
400mm~
Small
~100mm
Medium
100
~400mm
Large
400mm~
Small
~100mm
Medium
100
~400mm
Large
400mm~

 • 50, 55, A, B, C, D,
 • 1005-1095, 1513-1563
 • 1541-1572,  • 5015-5150
 • 4118-4161   • 1330-1345
 • 3115-3315
 • 4012-4047, 4419, 4422, 4427
 • 4615-4626, 4815-4820
 • 4320-4720, 8115-9430
 • 1108-1215   • 1100-7075
 • C10200, C12000, C21000 		 • W-1, W-2, W-5
 • P-2, P-3, P-4, P-5, P-6, P-20,
   P-21
 • S-1, S-2, S-4, S-5, S-6, S-7
 • L-2, L-6,  • 5155, 5160
 • A-2, O-1, O-2, O-6, D-2, D-3,
   CPM 10V
 • T-1, T-2, T-3, T-4, M-1, M-2,
   M-5, M-15
 • 50100, 51100, 52100 		• H-10, H-13, H-21, H-22,
  H-24, H-25
 • 210, 202, 302, 303, 304, 308
 • 314, 316, 317, 321, 330, 347
 • 410, 416, 420, 430, 440C
 • 15-5PH, 17-4PH, 15-7 		 • 309, 409, 600
 • MONEL, K-MONEL,
   INCONEL718,
   HASTELLOY A, B, C,
 • A286, INCOLOY 800,    RA330
 • ASTROLOGY WF-11
 • Monel400, K-500
 • Ti-6AI-4v

Band width
(mm)
Band thickness
(mm)
Pitch
1.1 / 1.5
2 / 3
3 / 4
34
1.1

•
•
41
1.3
•
•
•
54
1.6
•
•

67
1.6
•

80
1.6
•
